If your manufacturing operation swaps tools, programs or materials several times a day, the quality of the setup process directly determines capacity and on-time delivery. What is usually missing is a clear view of where exactly the time goes and how the sequence can be repeated reliably across shifts. This article sorts out the main causes, the cost drivers and the digital approaches that make changeovers shorter and more predictable.
Key takeaways
Long setup times usually come from poor synchronization of material, tooling, information and approvals, not from the mechanical changeover work itself.
A credible cost calculation covers machine downtime, labor time and startup scrap, and avoids double counting inside machine hour rates.
SMED, 5S and Poka Yoke are the methodological foundation you put in place before you digitalize a setup process.
Digital step-by-step instructions with mandatory checks cut search time, lock in the sequence and produce a setup record you can analyze.
Metrics such as setup time variation, startup scrap and standard adoption show whether an improvement actually works.
Why do changeovers take so long?
Changeovers take a long time mainly when material, tools, information and approvals are not ready at the same moment. Errors are added by undocumented experience, inconsistent sequences and missing feedback on the current setup status.
A changeover connects several roles and information sources. Machine operators, shift leads, maintenance, quality assurance and logistics often have to work closely together. Without a clear split of responsibilities, people wait for a crane, a gauge, a data record or an approval. The mechanical changeover itself then accounts for only part of the total downtime.
Typical time drains include:
People start looking for tools, clamping devices or cleaning agents only after the machine has stopped.
Material and packaging are not staged at the line in time.
Target parameters sit in paper binders, local files or in the heads of individual experts.
Work steps follow no defined sequence.
Machine programs and document versions do not match the order.
Quality checks start too late or have to be repeated because information is missing.
Faults and deviations reach maintenance or the shift lead only after a long search for the cause.
If you recognize your plant in several of these points, the lever is rarely faster hand movements. It sits in preparation and in the supply of information. A setup study directly on the shopfloor is the proven way to find it. A team observes several real changeovers, separates value-adding work from searching, waiting, transport and rework, and records the time for each step. An Ishikawa diagram then structures the causes across people, machine, material, method, measurement and environment.
What goes wrong during manual setups?
Manual setup processes are especially prone to skipped steps, wrong parameters, outdated documents and inconsistent execution between shifts. The risk grows when people work from memory under time pressure or when several variants look alike.
Concrete failure patterns include:
A sensor, guard or media connection is left unchecked after the tool change.
Torque, pressure, temperature or feed rate is carried over from a previous order.
Tool number, material batch or recipe is confused.
Cleaning points are skipped, so residual material contaminates the next batch.
The night shift follows a different sequence than the morning shift.
An experienced employee quietly compensates for missing information while new colleagues never notice the gap.
Quality release happens without fully documented inspection values.
Handwritten changes never reach every binder and every workstation.
The most common mistake here is to look only at operator behavior. Many operating errors are the visible result of a poorly designed process. A process FMEA helps you assess failure modes, effects and controls systematically. For critical risks, technical interlocks and Poka Yoke take priority over a mere warning in the instruction.
What do long setup times cost?
Long setup times cause machine downtime, tied-up labor time, startup losses and lost manufacturing capacity. Companies quantify these effects using their own machine hour rates, labor costs, scrap costs and the actual number of changeovers.
Calculating setup cost per changeover
For a single changeover, this cost logic works well:
Setup cost per changeover = downtime × relevant machine hour rate + setup hours × labor cost rate + startup scrap and rework + additional logistics and inspection costs
Keep your time values in consistent units. For minutes, the time factor is minutes / 60. For an annual view, multiply the cost per changeover by the number of comparable changeovers. Calculate the financial effect of an improvement from the time saved and the costs you can genuinely avoid or use productively.
Two mistakes that ruin the business case
Clean boundaries matter. Depending on your cost accounting, machine hour rates may already include labor or overhead. Add those items again and you count costs twice. Lost contribution margin belongs in the calculation only if your company can actually sell the freed-up capacity. On an underutilized line, you first gain capacity, not automatically additional revenue.
Cost effects beyond downtime
Beyond pure downtime, other costs are at work:
Unproductive employee time: several people wait or search without moving the setup forward.
Startup losses: scrap, rework and additional inspections occur until the first stable good part.
Schedule risk: longer changeovers push out follow-on orders and strain on-time delivery.
Inventory cost: companies increase batch sizes to change over less often and tie up capital in work-in-progress and finished goods.
Fault cost: incorrectly executed steps lead to equipment faults, additional MTTR and unplanned maintenance interventions.
For investment decisions, use a conservative scenario. Count only proven time losses, realistic changeover frequencies and capacity you can actually use. That keeps the business case solid, even when your controller takes a closer look.
Why paper binders fail in time-critical changeovers
Paper binders and long text instructions do not deliver information fast, clearly and contextually enough for time-critical changeovers. They make version control, navigation, feedback and correct assignment to the right machine or product variant harder than they need to be.
On the floor, almost nobody reads several pages of running text while a machine is down. People skim paragraphs, copy values by hand or fall back on routine. Images are often too small, changes are missing from individual copies, and questions cannot be captured in the document.
A PDF solves only part of the problem. It is digitally available but usually remains a static document. A PDF does not route you to the right variant path, does not validate any input, does not require confirmation of critical steps and does not create a structured setup record.
Paper still has a legitimate role as a defined fallback when devices, network or platform fail. That fallback needs a clear version status, a controlled storage location and a process for keeping it current. As the primary working medium, however, paper does not fit setup processes that change frequently and need to be traceable.
Paper, PDF and a digital assistance platform compared
A digital assistance platform guides execution interactively, while paper and PDF mostly provide static information. The essential difference lies in context-based selection, mandatory entries, current versioning and process data you can actually analyze.
The right choice depends on how critical the process is. For simple notes that rarely change and require no evidence, a controlled PDF is enough. For frequent changeovers, many variants, quality-critical parameters or traceability requirements, an interactive assistance platform is the better answer because it combines standard execution with data capture.
How do digital step-by-step instructions shorten setup time?

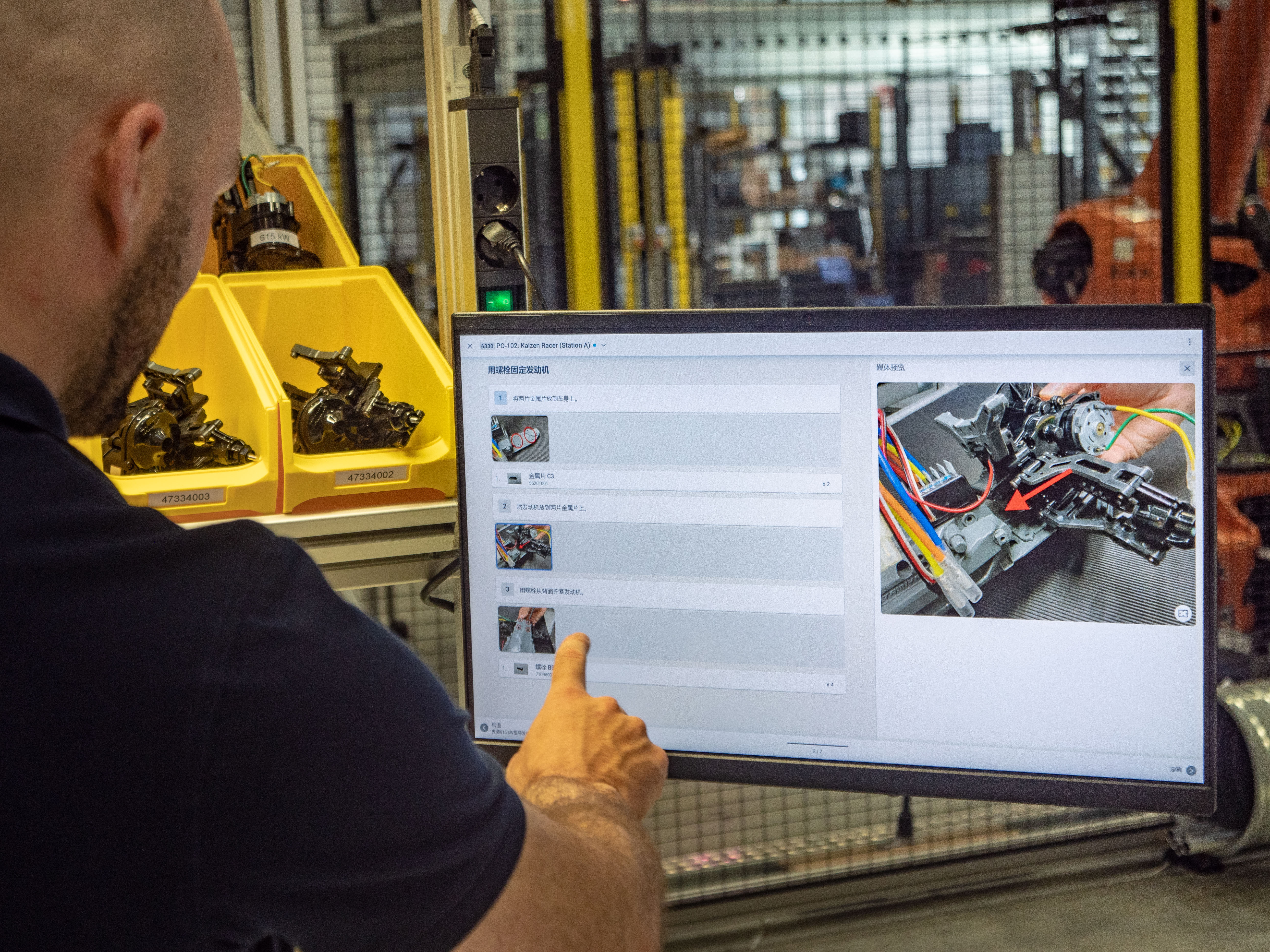

Digital step-by-step instructions shorten setup times by providing the right sequence, target values and media exactly at the work step where they are needed. They cut search time and interpretation effort, standardize the sequence and make deviations visible immediately.
The effect comes from several mechanisms:
The order, machine or tool calls up the correct instruction directly, via QR code, RFID or a handover from MES or ERP.
Short steps show only the information needed for the current action.
Variant-dependent branching hides irrelevant steps.
Photos highlight connections, mounting points and installation positions.
Target values and tolerances sit next to the corresponding entry field.
Mandatory checks block a release without the defined evidence.
Timestamps and status messages make bottlenecks analyzable for KVP in Manufacturing and for the shift lead.
The instruction does not replace a SMED analysis. The biggest time gains appear when the team converts internal activities into external ones. Tools are picked before the stop, programs are preloaded, gauges are laid out. The digital instruction coordinates that preparation and makes its completion visible.
Photos and short videos instead of running text
Photos and short explainer videos convey spatial, mechanical and visual actions faster than long descriptions. They work particularly well for installation positions, hand movements, connection sequences, reference points and telling similar components apart.
A good photo shows exactly the relevant detail. Markings direct the eye to screws, sensors or inspection points. A short video suits movement sequences, for example inserting a fixture correctly. Text remains essential for unambiguous target values, safety rules, tolerances and decision criteria.
Multimedia needs clear design rules:
One medium explains one work step, not the entire changeover.
Camera angle and lighting match the view from the workstation.
Markings never cover safety-relevant details.
Spoken content gets subtitles or an equivalent text version.
Media show the released machine condition, never an improvised shortcut.
Changes to a tool or machine trigger a technical review of the affected content.
In practice, the winning combination is a short action sentence, one unambiguous image and the required target values. Use video selectively, because long playback extends the setup time itself.
The checklist principle: confirmation and evidence
A digital checklist requires confirmation of defined setup steps and turns that into a structured setup record. It shows progress, links entries to an order and creates the data basis for quality evidence and process improvement.
Not every click proves correct execution, though. For critical steps the platform needs suitable evidence, for example a measured value with a tolerance check, a barcode scan, a photo, a tool ID or an electronic release by an authorized role. For less critical steps, a simple confirmation is enough.
The record should contain at least the order, machine, instruction revision, executing role, timestamps, measured values, deviations and release status. That supports documented information in quality management and traceability wherever internal or customer-specific requirements apply. The retention period follows internal, legal and customer-specific rules.
How to make sure setup steps are not forgotten
Mandatory sequences, technical plausibility checks and clearly defined release points secure the important setup steps. Where risks are high, the plant adds technical interlocks, four-eyes approvals or automated capture of measured values to the digital guidance.
A sound control logic follows the risk of each individual step:
Mandatory step: the sequence cannot be completed normally without confirmation.
Sequence control: a follow-on step only opens once the required precondition is met.
Value check: entries outside the released range trigger a block or a defined deviation process.
Identity check: barcode, Data Matrix code or RFID confirms material, tool or fixture.
Four-eyes principle: a second authorized person confirms safety-critical or quality-critical points.
Machine signal: the platform takes states or parameters directly from the controller, where the interface and data quality allow it.
Escalation: deviations go to the shift lead, quality or maintenance with error code, image and context.
For hazards there is a hard line: a digital checkbox replaces neither protective measures nor lockout tagout, isolation procedures, risk assessments or required qualifications. Safety-critical sequences must match your occupational safety management and the machine-specific requirements.
Turning shopfloor experience into a released standard
Experience becomes usable when skilled workers transfer their proven techniques, decision rules and warning signs into released digital standards together with the process owners. Photos, short videos, boundary samples and failure images make implicit knowledge accessible to other shifts.
An interview round alone is rarely enough. Much of it only shows up during a real changeover. So observe experienced employees on the shopfloor and ask targeted questions whenever something deviates. How do they recognize wear? Which sequence avoids rework? Which sounds or measured values indicate an incorrect fit?
The team then separates three types of knowledge:
Binding standard: the technically reviewed normal sequence.
Variant rule: a branch for a specific product, tool or machine model.
Deviation knowledge: recognition criteria, response path and escalation when faults occur.
Release must not rest with one experienced individual. Manufacturing, maintenance, quality and occupational safety each review the content relevant to them. One defined owner looks after version, review date and change process. That is how personal experience becomes a controlled standard instead of a collection of unverified tips.
Which features does a digital assistance platform for changeovers need?
A suitable assistance platform combines visual step sequences, variant logic, data capture, version control and analysis in one usable system. What decides the selection is not the highest feature count, but reliable support for your specific setup process and a maintenance organization that can carry it.
Use this requirements catalog as the basis for your RFP:
Content creation: editor for text, photos, videos, symbols, target values and warnings without special programming.
Variant control: conditions by machine, product, tool, order or user role.
Interactive checklists: mandatory fields, measured values, tolerances, scans, photos, signatures and four-eyes approvals.
Version management: review, release, validity date, revision history and controlled withdrawal of old versions.
Mobile use: tablets or rugged mobile devices, camera, scanner and an operator-friendly interface.
Offline use: local execution and later synchronization for areas with unstable wireless coverage.
Multilingual content: centrally maintained language versions with controlled translation.
Roles and permissions: access by task, plant, line and qualification.
Analysis: setup time per step, deviations, abort reasons, rework and version usage.
Interfaces: standardized APIs and connectors to ERP, MES, QMS, identity management and machine data.
Information security: authentication, logging, encryption, backup, deletion concept and controlled device access.
Usability: large controls, clear navigation, glove operation and short loading times on the shopfloor.
Test your shortlist with a real changeover. A presentation in the meeting room shows you nothing about dead spots in the network, dirty gloves, glare, time pressure or how understandable the content is at the machine.
If you want setup processes not just described but reliably executed and evidenced, you need more than text. A Connected Worker Platform like Operations1 maps setup sequences as operations with steps, images, videos and interactions. These include number entries with tolerance checks and real-time error detection, photo capture, signatures and barcode scans.
Modular documents support the mapping of variants. Global assets ensure that changes to images, videos or materials flow automatically into every linked instruction.
A multilevel review process publishes a new setup standard only after all responsible roles have reviewed it.
Qualification management blocks qualification-dependent documents for employees who are not authorized.
Every run creates a report with the captured values. Analytics evaluates cycle times and failure patterns among other things.
Fixed terminal or mobile device?
Fixed terminals suit stationary workstations with a clear line of sight, mobile devices suit setup steps spread across an area and the direct capture of photos or scans. In many plants, a combination delivers the most value.
For a compact workstation with central operation, a fixed terminal is usually the better choice. When people walk around a large line, scan tool IDs or capture images at the inspection point, a rugged tablet or mobile device wins. In practice, a fixed terminal for overview and release plus a mobile device for decentralized steps often works best.
How do you roll out digital setup instructions in the plant?
A digital set-up instructions solution should be introduced with a clearly scoped pilot process, tested on the shopfloor and scaled only after measurable stabilization. The most effective rollout combines SMED analysis, employee involvement, quality-assured content and a solid technical operating organization.
Select the pilot process: choose a line with frequent changeovers, visible time loss and a committed team. Avoid both a trivial process and the most complex line in the plant as your starting point.
Define measurement boundaries and a baseline: define start, end, product change classes and quality criteria. Record several real changeovers including waiting time, search time and startup scrap.
Improve the setup sequence with SMED: separate internal and external activities. Prepare tools, material, programs and gauges before the stop. Remove unnecessary walking distances with 5S and secure mix-ups with Poka Yoke.
Create the digital standard: break the target process into short, action-oriented steps. Add images, short videos, target values, variant rules, warnings and escalation paths.
Review and release the content: manufacturing, maintenance, quality and occupational safety review their own topics. Define owners, revision, review cycle and change process.
Test under real conditions: run changeovers across different shifts and qualification levels. Check comprehensibility, device, network, glove operation and the fallback procedure.
Qualify employees and release roles: train not only how to operate the platform but also the new setup standard. Confirm competencies and restrict critical steps to authorized roles.
Measure results and work on deviations: compare setup time, variation, startup scrap and standard adoption against the baseline. Use step times and feedback for continuous improvement.
Secure technical operations: define device management, charging stations, cleaning, spare devices, user administration, support, updates, backup and offline use.
Scale in a controlled way: transfer the model to similar machine families first. Use templates without copying machine-specific risks and variants unchecked.
The most common rollout mistake is importing large volumes of existing documents without reviewing them. That grows the digital archive, not the process quality. A process-driven pilot is the better route: improve one relevant changeover first, prove the benefit with time and quality metrics, then scale by machine family. That keeps content maintenance, acceptance and technical integration manageable.
Which metrics show that setup time reduction is working?
Success shows up as shorter and at the same time more stable setup times, fewer startup losses and higher usable Machine Availability. A meaningful measurement compares like-for-like changeovers before and after the rollout and separates product, machine and shift effects.
Suitable metrics include:
Setup time: time from the defined start point to the first released good part.
Setup time variation: median plus an upper percentile such as P90 shows process stability better than an average alone.
Changeover schedule adherence: share of changeovers completed within the planned time window.
Startup scrap: scrap quantity or scrap cost until the process is stable.
First pass yield after setup: share of parts that meet requirements without rework.
Machine availability: ratio of actual run time to planned manufacturing time under your own defined formula.
OEE: shows the effect on availability, performance and quality, but as an aggregate metric it cannot be attributed to setup alone.
Deviation rate: share of changeovers with an escalation, missing evidence or a blocked value.
Standard adoption: share of changeovers completed with the valid digital instruction.
Time per setup step: identifies searching, waiting, approvals and technical bottlenecks.
Define a baseline before the pilot across several representative changeovers. Group them by machine family, product change class and complexity. Do not compare a simple color change after the rollout with a full tool change from the baseline.
For the assessment, use a pair of metrics: setup time plus a quality metric. A faster changeover is no success if startup scrap, faults or safety deviations go up. Discuss conspicuous values in shopfloor management and track improvements through continuous improvement or a structured 8D process.
FAQ
Why are short setup times especially critical in batch size one?
Batch size one and customer-specific manufacturing increase the number of product changes and therefore the share of setup time in available machine time. The smaller the batches and the wider the variant range, the more strongly fast, repeatable changeovers influence cost, lead time and on-time delivery.
In high-mix assembly, packaging, plastics processing, pharmaceutical or food manufacturing, tools, materials, labels, recipes and inspection characteristics change constantly. Machine builders and original equipment manufacturers in the automotive environment also have to control changing configurations reliably. A setup error then affects more than the duration of the change. It puts the correct execution of a customer-specific order at risk.
Short setup times enable smaller economic batches. The plant produces closer to demand, reduces inventory and reacts faster to order changes. Without stable setup standards, the opposite incentive appears: planning bundles orders into large batches purely to avoid changeovers. That extends lead times and reduces flexibility.
What matters is not the fastest changeover ever achieved. A competitive process delivers a low and predictable setup time across shifts, product variants and qualification levels. Digital instructions support that repeatability, provided variant rules and target values are properly maintained.
Can new or semi-skilled employees perform changeovers safely?
New or semi-skilled employees perform standardizable setup tasks more safely when a digital instruction explains every step unambiguously and their qualification matches the risk profile of the task. The assistance shortens training, but it does not replace instruction, authorization or expertise for hazardous and complex activities.
A staged model works well for building capability:
The person completes the technical and safety-related instruction.
A qualified specialist demonstrates the changeover at the real workstation.
The learner performs the sequence under supervision using the digital instruction.
A practical competency assessment confirms which tasks they have mastered.
Role release in the platform limits access to permitted activities.
Regular repetition and observation keep the standard in place.
Multilingual content, unambiguous images and consistent symbols reduce language barriers. Safety terms and technical meanings must be validated in the process. Machine translation without review by qualified native speakers is not sufficient for critical instructions.
Work on electrical systems, interventions in protective equipment, complex parameterization and activities with special hazards remain reserved for appropriately qualified and appointed people. The better objective in practice is therefore not "everyone may do everything" but "every released person masters their clearly defined scope".
What matters when connecting to ERP or MES systems?
The integration must define unambiguously which system owns orders, master data, instruction versions, process values and confirmations. What counts is stable identifiers, controlled versions, fault-tolerant interfaces and a tested offline and restart process.
Typical data flows are:
ERP supplies the manufacturing order, item, variant, quantity and planned date.
MES supplies or receives machine status, operation, actual times and order progress.
The assistance platform selects the matching setup instruction and documents steps, measured values and deviations.
A QMS takes over quality-relevant evidence or triggers a deviation process.
Machine controls, tool management or gauges supply actual values and identities, where technically released.
Before any technical implementation you need a data model. Item number, tool ID, machine ID and revision status must be unique across systems. Semantics matter just as much: a "completed" changeover must not mean only the mechanical assembly in one system and the quality release in another.
Check these integration criteria:
Who owns each data object from a business perspective?
Which data is read, written or only referenced?
What happens with missing master data, duplicate IDs or a blocked revision?
How does the system prevent duplicate confirmations after a connection drop?
Which latency is acceptable for the process?
How are users, roles and permissions synchronized?
Which protocols, APIs and authentication methods does the IT architecture support?
How do monitoring, backup, updates, support and recovery work?
Do not start with maximum integration. For the pilot, an unambiguous order or variant selection plus a controlled data export is often enough. Automate further data flows only once the process, master data and responsibilities are stable. This order reduces interface effort and prevents faulty master data from steering the shopfloor process in the wrong direction faster than before.
What is setup time reduction through digitalization?
Setup time reduction through digitalization is the systematic shortening and stabilization of machine changeovers using digital step-by-step instructions, checklists and worker assistance platforms. The digital guidance walks employees through the change of tools, materials, programs and parameters, and documents the execution at the same time.
Setup covers every activity that prepares a machine or line to move from the current manufacturing order to the next one. That includes tool changes, material staging, cleaning, parameter selection, function testing and release. To measure setup time, the plant needs one consistent boundary. A solid approach measures from the last good part of the old order to the first released good part of the new order.
Digitalization does not replace methodical process improvement. It makes an improved standard available and measurable on the shopfloor. It works best in combination with SMED, 5S and Poka Yoke:
SMED separates internal setup activities performed while the machine is stopped from external activities that happen before or after the stop.
5S makes sure tools, fixtures and aids are clearly labeled and available at a defined location.
Poka Yoke prevents mix-ups, for example through coded connections, unique tool mounts or digital plausibility checks.
The order matters. First analyze and simplify the setup process, then map the best known sequence digitally. Digitalize an unnecessarily complicated process and you get an unnecessarily complicated digital process.
